Davey ISO spec Pumps
Davey ISO spec base plate

Our client required an all in one skid for supplying water to cooling towers, along with a pressure boosting pump.

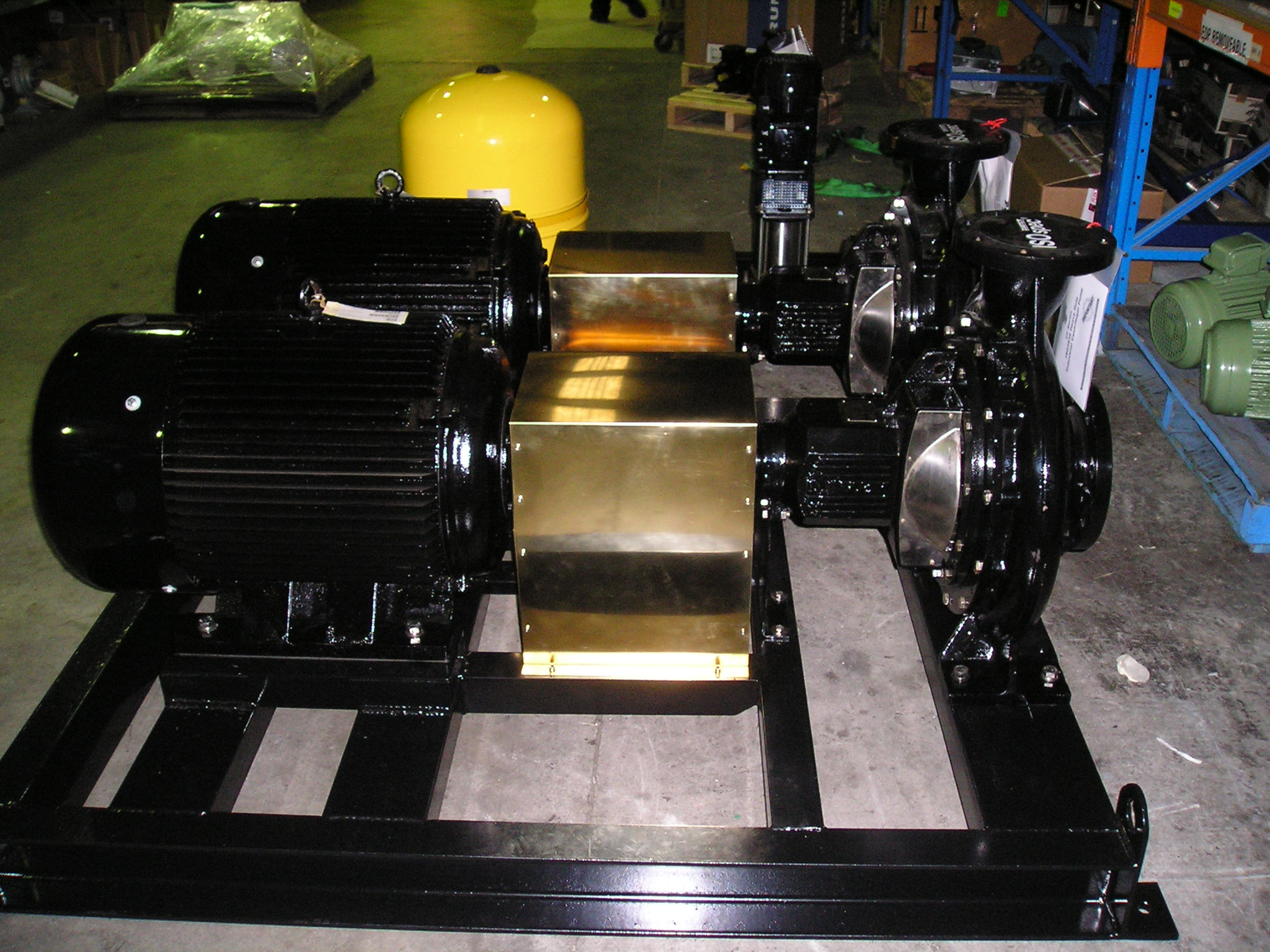

Process Pumps fabricated a heavy duty skid and mounted two Davey ISO spec centrifugal pumps powered by 55kW 3-phase 1450 RPM motors. A Davey multistage centrifugal pump with pressure vessel for pressure boosting was also mounted to fulfill the application requirements.

Each Davey ISO spec pump is coupled to the motor via a spacer coupling, this allows the main pump assembly to be removed for maintenance without removing the motor or front pump housing from the connecting pipe-work.
(Click photo for enlarged version)
